Low-Voltage Secondary Distribution Cable

SD Cable

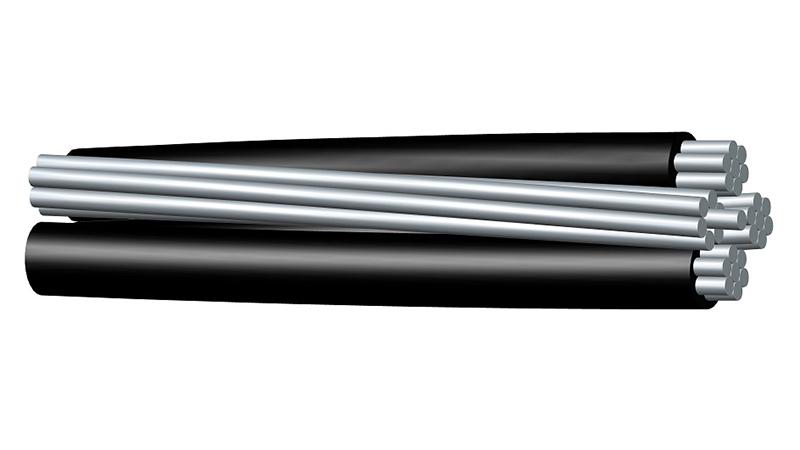

Service drop aluminum cable has three phase conductors made up of concentrically compact stranded aluminum alloy 1350-H19 wires, insulated with PE or cross-linked polyethylene (XLPE), and one neutral messenger of AAC/AAAC/ACSR.

This sunlight resistant SD aluminum cable can be used at a max. voltage of 600V and at a max. conductor temperature of 75℃ (PE insulation) or 90℃ (XLPE insulation).

Applications:

SD cable is used in low voltage overhead power lines, outdoor lighting and temporary wiring.

Standards:
  • B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
  • B-231 Aluminum Conductors, Concentric-Lay-Stranded.
  • B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
  • B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
  • B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
  • ANSI/ICEA S-76-474.
Specifications:
No. of Wires × Size Phase Conductor Neutral Conductor Phase Conductor Insulation Size Complete Cable Diameter (mm)
Stranding Nominal Cond. Diameter Steel Al Nominal Cond. Diameter Thickness Nominal Cond. Diameter
Albino Phase Conductor 3 X 1 AWG 19/1.68 8.02 1.52 11.06 25.5
Neutral 1 X 1 AWG 1/3 6/3 9
Standardbred Phase Conductor 3 X 1/0 AWG 7/3.16 9.01 1.52 12.05 28
Neutral 1 X 1/0 AWG 1/3.37 6/3.37 10.11
Costena Phase Conductor 3 X 1/0 AWG 19/1.89 9.01 1.52 12.05 28
Neutral 1 X 1/0 AWG 1/3.37 6/3.37 10.11
Chicoteagues Phase Conductor 3 X 2/0 AWG 7/3.55 10.09 1.52 13.14 30.7
Neutral 1 X 2/0 AWG 1/3.78 6/3.78 11.35
Grullo Phase Conductor 3 X 2/0 AWG 19/2.12 10.09 1.52 13.14 30.7
Neutral 1 X 2/0 AWG 1/3.78 6/3.78 11.35
Mare Phase Conductor 3 X 3/0 AWG 7/3.98 11.37 1.52 14.42 33.9
Neutral 1 X 3/0 AWG 1/4.25 6/4.25 12.74
Suffolk Phase Conductor 3 X 3/0 AWG 19/2.38 11.37 1.52 14.42 33.9
Neutral 1 X 3/0 AWG 1/4.25 6/4.25 12.74
Stallion Phase Conductor 3 X 4/0 AWG 7/4.46 12.74 1.52 15.79 37.3
Neutral 1 X 4/0 AWG 1/4.77 6/4.77 14.31
Appaloosa Phase Conductor 3 X 4/0 AWG 19/2.67 12.74 1.52 15.79 37.3
Neutral 1 X 4/0 AWG 1/4.77 6/4.77 14.31
Bronco Phase Conductor 3 X 336.4 MCM 19/3.38 16.07 2.03 20.13 47
Neutral 1 X 336.4 MCM 1/3.47 44/6.36 17.36
Gelding Phase Conductor 3 X 336.4 MCM 19/3.38 16.07 2.03 20.13 45.2
Neutral 1 X 4/0 AWG 1/4.77 6/4.77 14.31
Hurricane Phase Conductor 3 X 500 MCM 37/2.94 19.6 2.03 23.66 54
Neutral 1 X 336.4 AWG 7/2.25 26/2.89 18.29
