MHF Cable，Aluminum Mobile Home Feeder Cable

MHF Cable

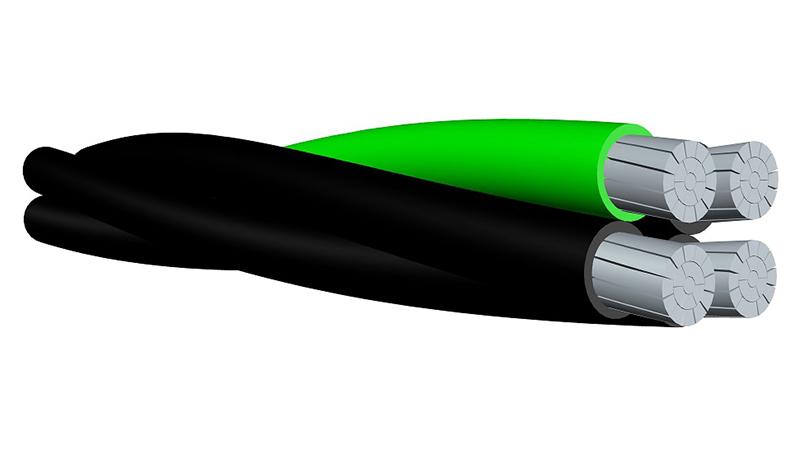

Mobile home feeder cable consists of four AA-8000 series aluminum alloy conductors: two phase conductors, a white striped neutral conductor and a green equipment grounding conductor. The conductors are insulated with type RHH/RHW-2/USE-2 cross-linked polyethylene (XLPE).

Aluminum MHF cable can be used at max. voltage of 600V and at a max. conductor temperature of 90℃ for direct burial in wet, damp or dry locations.

Applications:

MHF cable is designed for the connection of mobile homes to electric power supply.

Standards:

Our aluminum mobile home feeder cable meets UL 44 and UL 854 and has passed the following tests: FT2 horizontal flame test, 720h sunlight resistance test, aging test on insulation materials, dielectric voltage withstand test, etc.

Specifications:
Part Number Insulated Phase Conductors
 Insulated Neutral Conductor Insulated Equipment Grounding Conductor Complete Cable Diameter(mm)
Nominal Diameter Insulation Thickness Nominal Diameter Insulation Thickness Nominal Diameter Insulation Thickness
2X2+1X4+1X6 6.81 1.52 5.41 1.52 4.29 1.52 21.2
2X2+1X2+1X4 6.81 1.52 6.81 1.52 5.41 1.52 22.7
2X2/0+1X1+1X4 9.55 2.03 7.59 2.03 5.41 1.52 28.5
2X2/0+1X2/0+1X1 9.55 2.03 9.55 2.03 7.59 2.03 31.7
2X4/0+1X2/0+1X4 12.07 2.03 9.55 2.03 5.41 1.52 32.6
2X4/0+1X4/0+1X2/0 12.07 2.03 12.07 2.03 9.55 2.03 37.3
