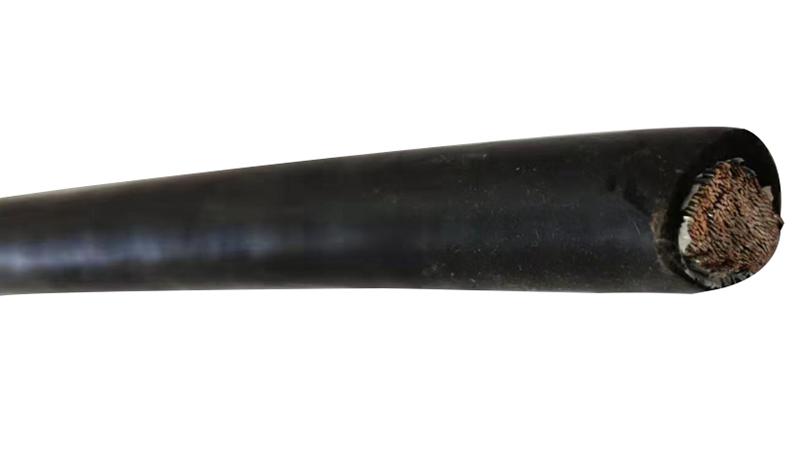

Telecom Power Cable Type II

Telecom power cable Type II has a conductor of stranded tinned copper wires per ASTM B172, a separator tape and limited smoke, non-halogen polyolefin insulation.

Telecom power cable Type II can be used at 600 volts, 105°C dry, 75℃ wet.

Applications:

Telecom power cable Type II is for use in central offices, telecom power systems (batteries and rectifiers), transmission and remote control systems. It is suitable for both fixed and mobile installations. Custom telecom power cable can be made upon request according to different performance requirements.

Standards:

Our telecom power cable Type II meets UL 44, UL 66 and UL 758 standards. It has passed the following mechanical and electrical tests: FT4-ST1 vertical-tray flame test and smoke release test, VW-1 vertical flame test, FT2 horizontal flame test, aging test on insulation materials, dielectric voltage withstand test, etc.

Specifications:

Part Number	Conductor Size	Stranding	Insulation Thickness(mm)	Complete Cable Diameter (mm)
Type II	18AWG	7/0.40	0.76	3.0
Type II	16AWG	7/0.50	0.76	3.3
Type II	14AWG	41/0.254	1.14	4.9
Type II	12AWG	65/0.254	1.14	5.3
Type II	10AWG	105/0.254	1.14	6.1
Type II	8AWG	41/0.50	1.52	7.4
Type II	6AWG	65/0.50	1.52	8.4
Type II	4AWG	105/0.50	1.52	10.3
Type II	2AWG	165/0.50	1.52	11.6
Type II	1/0AWG	266/0.50	2.03	14.9
Type II	2/0AWG	342/0.50	2.03	16.3
Type II	4/0AWG	532/0.50	2.03	19.3
Type II	350AWG	882/0.50	2.41	24.8
Type II	500AWG	1221/0.50	2.41	28.3
Type II	750AWG	1850/0.50	2.79	33.9
