DLO Diesel Locomotive Cable

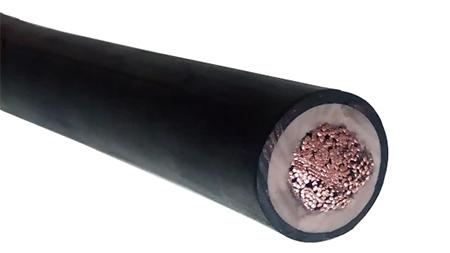

Diesel locomotive cable has a conductor of stranded tinned copper wires per ASTM B33 with a separator tape over it, EPDM insulation and a CPE jacket.

DLO cable is to be used at a maximum of 600 or 2000 volts and 90℃ in dry or wet locations.

Applications:

Diesel locomotive cable can be used in 1/0 awg flexible, portable motor and power leads for diesel vehicles, railroad and transit cars, bulldozers, drilling rigs, storage batteries and other applications as described in the NEC.

Standards:

Our DLO cable meets UL 44 and UL 2806. It has passed the following tests: FT4 vertical-tray flame test, VW-1 flame test, aging test on insulation materials, dielectric voltage withstand test and other cable testing.

Specifications:

Part Number	Conductor Size (AWG,Kcmil)	Conductor Stranding(IN/AWG)	Nom. Insul. Thick.(in)	Jacket Thick(in)	Complete Cable Diameter (in)
DLO 600V	14	19/0.0147	0.045	0.015	0.20
DLO 600V	12	19/0.0185	0.045	0.015	0.22
DLO 600V	10	27/24	0.045	0.015	0.25
DLO 600V	8	37/24	0.060	0.030	0.33
DLO 600V	6	61/24	0.060	0.030	0.37
DLO 600V	4	105/24	0.060	0.030	0.44
DLO 600V	3	133/24	0.060	0.030	0.47
DLO 600V	2	147/24	0.060	0.030	0.48
DLO 600V	1	210/24	0.080	0.045	0.61
DLO 600V	1/0	266/24	0.080	0.045	0.66
DLO 600V	2/0	323/24	0.080	0.045	0.70
DLO 600V	3/0	418/24	0.080	0.045	0.76
DLO 600V	4/0	532/24	0.080	0.045	0.83
DLO 600V	262.6	646/24	0.095	0.065	0.96
DLO 600V	313.3	775/24	0.095	0.065	1.02
DLO 600V	373.7	925/24	0.095	0.065	1.07
DLO 600V	444.4	1110/24	0.095	0.065	1.14
DLO 600V	535.3	1332/24	0.110	0.065	1.25
DLO 600V	646.4	1591/24	0.110	0.065	1.33
DLO 600V	777.7	1924/24	0.110	0.065	1.43
DLO 600V	929.9	2299/24	0.110	0.065	1.53
DLO 600V	1111.1	2745/24	0.125	0.095	1.73
