Service Entrance Cable

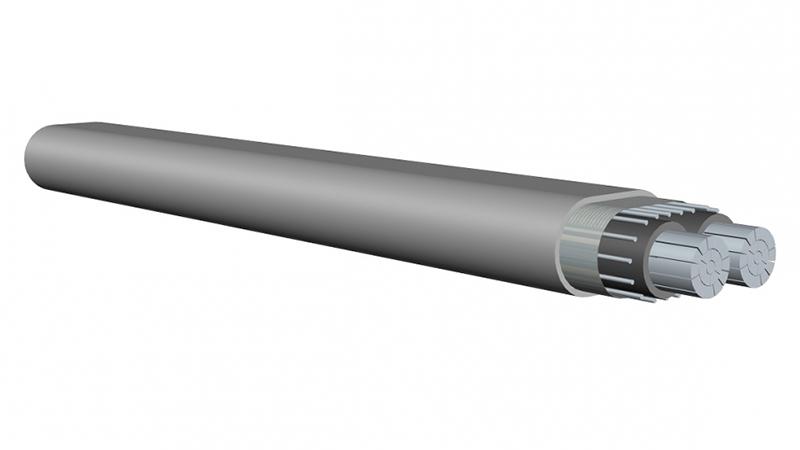

Service entrance cable consists of AA-8000 series aluminum alloy conductors, insulated with sunlight resistant type XHHW-2 cross-linked polyethylene (XLPE) and wrapped together with a neutral conductor using a reinforced tape. It has a sunlight resistant PVC jacket that is available in various colors.

We offer two types of SE cables: SER cable has 2-4 stranded phase conductors and bare ground wire; SEU cable has two parallel phase conductors surrounded by a concentric bare ground wire.

Aluminum SE cable is to be used at 600V and at a max. conductor temperature of 90℃ for outdoor uses in wet, damp or dry locations.

Applications:

Aluminum SE cable is intended for electric power transmission from the junction box to the meter box and from the meter base to the distribution cabinet. It is also suitable for other applications as specified in the NEC.

Standards:

Our SE cable meets UL 44 and UL 854. It has passed the following tests: current overload test, tensile testing, horizontal flame test, 720h sunlight resistance test, aging test on insulation materials, dielectric voltage withstand test, etc.

Specifications:

The structure size of SER cable

Conductor Size	Nominal Cond. Diameter			Insulation Thickness		Nominal Diameter		Approx. Weight		Allowable Ampacities
（AWG or kcmil）	Inch		mm	mils	mm	mils	mm	Kg/Km	LBS/1000FT	60℃	75℃	90℃
Three Conductor With Bare Ground
8-8-8-8		0.134	3.4	45	1.14	14.2	14.2	208	140	35	40	45
6-6-6-6		0.169	4.29	45	1.14	16.3	16.3	282	190	40	50	55
4-4-4-4		0.213	5.41	45	1.14	19.1	19.1	395	265	55	65	75
4-4-4-6		0.213	5.41	45	1.14	18.4	18.4	370	249	55	65	75
2-2-2-2		0.268	6.81	45	1.14	22.6	22.6	570	383	75	90	100
2-2-2-4		0.268	6.81	45	1.14	21.7	21.7	530	356	75	90	100
1-1-1-1		0.299	7.59	55	1.4	25.5	25.5	723	486	85	100	115
1-1-1-3		0.299	7.59	55	1.4	24.5	24.5	673	452	85	100	115
1/0-1/0-1/0-1/0		0.336	8.53	55	1.4	27.9	27.9	876	589	100	120	135
1/0-1/0-1/0-2		0.336	8.53	55	1.4	26.8	26.8	813	546	100	120	135
2/0-2/0-2/0-2/0		0.376	9.55	55	1.4	30.4	30.4	1063	714	115	135	150
2/0-2/0-2/0-1		0.376	9.55	55	1.4	29.2	29.2	984	661	115	135	150
3/0-3/0-3/0-3/0		0.423	10.74	55	1.4	33.4	33.4	1298	872	130	155	175
3/0-3/0-3/0-1/0		0.423	10.74	55	1.4	32	32	1200	806	130	155	175
4/0-4/0-4/0-4/0		0.475	12.07	55	1.4	36.8	36.8	1589	1068	150	180	205
4/0-4/0-4/0-2/0		0.475	12.07	55	1.4	35.2	35.2	1466	985	150	180	205
250-250-250-250		0.52	13.21	65	1.65	40.6	40.6	1902	1278	170	205	230
250-250-250-3/0		0.52	13.21	65	1.65	39	39	1771	1190	170	205	230

The structure size of SER cable

Conductor Size	Nominal Cond. Diameter		Insulation Thickness		Nominal Diameter		Approx. Weight		Allowable Ampacities
（AWG or kcmil）	Inch	mm	mils	mm	mils	mm	Kg/Km	LBS/1000FT	60℃	75℃	90℃
Four Conductor With Bare Ground
8-8-8-8-8	0.134	3.4	45	1.14	404	15.9	257	173	35	40	45
6-6-6-6-6	0.169	4.29	45	1.14	466	18.3	350	235	40	50	55
4-4-4-4-4	0.213	5.41	45	1.14	544	21.4	494	332	55	65	75
4-4-4-4-6	0.213	5.41	45	1.14	528	20.8	468	315	55	65	75
2-2-2-2-2	0.268	6.81	45	1.14	644	25.4	714	480	75	90	100
2-2-2-2-4	0.268	6.81	45	1.14	624	24.6	675	453	75	90	100
1-1-1-1-1	0.299	7.59	55	1.4	729	28.7	909	611	85	100	115
1-1-1-1-3	0.299	7.59	55	1.4	707	27.8	859	577	85	100	115
1/0-1/0-1/0-1/0-1/0	0.336	8.53	55	1.4	796	31.4	1100	739	100	120	135
1/0-1/0-1/0-1/0-2	0.336	8.53	55	1.4	772	30.4	1037	697	100	120	135
2/0-2/0-2/0-2/0-2/0	0.376	9.55	55	1.4	869	34.2	1334	896	115	135	150
2/0-2/0-2/0-2/0-1	0.376	9.55	55	1.4	841	33.1	1256	844	115	135	150
3/0-3/0-3/0-3/0-3/0	0.423	10.74	55	1.4	954	37.6	1628	1094	130	155	175
3/0-3/0-3/0-3/0-1/0	0.423	10.74	55	1.4	922	36.3	1530	1028	130	155	175
4/0-4/0-4/0-4/0-4/0	0.475	12.07	55	1.4	1049	41.3	1993	1339	150	180	205
4/0-4/0-4/0-4/0-2/0	0.475	12.07	55	1.4	1013	39.9	1870	1257	150	180	205
250-250-250-250-250	0.52	13.21	65	1.65	1159	45.6	2388	1605	170	205	230
250-250-250-250-3/0	0.52	13.21	65	1.65	1123	44.2	2258	1517	170	205	230

The structure size of SEU cable

Conductor Size	Nominal Cond. Diameter		Insulation Thickness		Nominal Diameter		Approx. Weight		Allowable Ampacities
（AWG or kcmil）	Inch	mm	mils	mm	mils	mm	Kg/Km	LBS/1000FT	60℃	75℃	90℃
Two Conductor With Bare Concentric Ground
2008/8/8	0.134	3.4	45	1.14	398×254	15.7×10.0	165	111	35		40
2006/6/6	0.169	4.29	45	1.14	443×277	17.5×10.9	219	147	40		50
2004/4/4	0.213	5.41	45	1.14	504×308	19.8×12.1	304	204	55		65
2004/4/6	0.213	5.41	45	1.14	501×305	19.7×12.0	280	188	55		65
2002/2/2	0.268	6.81	45	1.14	598×367	23.6×14.5	439	295	75		90
2002/2/4	0.268	6.81	45	1.14	578×347	22.7×13.7	399	268	75		90
2001/1/1	0.299	7.59	55	1.4	680×416	26.8×16.4	554	372	85		100
2001/1/3	0.299	7.59	55	1.4	654×390	25.8×15.4	504	339	85		100
1/0-1/0-1/0	0.336	8.53	55	1.4	730×442	28.7×17.4	669	450	100		120
1/0-1/0-2	0.336	8.53	55	1.4	717×429	28.2×16.9	610	410	100		120
2/0-2/0-2/0	0.376	9.55	55	1.4	796×482	31.3×19.0	811	545	115		135
2/0-2/0-1	0.376	9.55	55	1.4	784×470	30.9×18.5	736	494	115		135
3/0-3/0-3/0	0.423	10.74	55	1.4	856×512	33.7×20.1	984	661	130		155
3/0-3/0-1/0	0.423	10.74	55	1.4	847×503	33.3×19.8	894	601	130		155
4/0-4/0-4/0	0.475	12.07	55	1.4	926×548	36.5×21.6	1198	805	150		180
4/0-4/0-2/0	0.475	12.07	55	1.4	929×551	36.6×21.7	1091	733	150		180
