PV Cable, Photovoltaic Wire

PV Cable

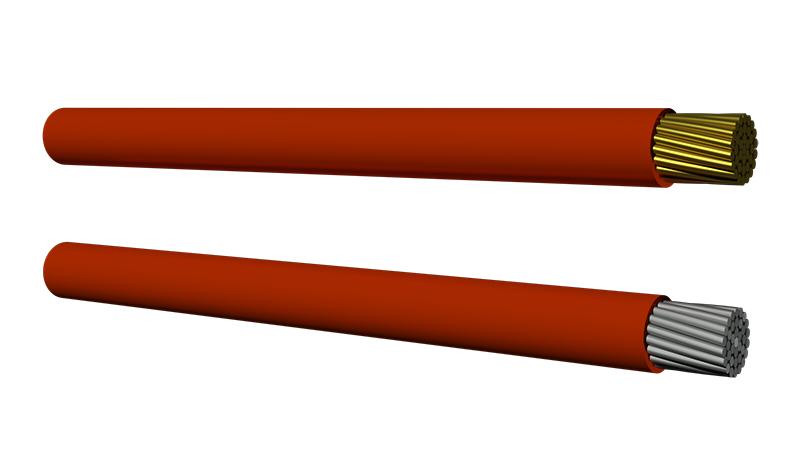

Photovoltaic cable is constructed with a copper or aluminum conductor and cross-linked polyolefin (XLPO) insulation.

PV cable is to be used at 600 volts or 2000 volts and at a max. conductor temperature of 90℃.

Due to its good weather resistance, PV cable can be used in installations in dry, damp or wet outdoor locations where exposed directly to sunlight.

Applications:

Photovoltaic wire is primarily used for solar cells, modules and arrays in solar power system.

Standards:
  • Our PV cable meets UL 4703 and UL 44 standards. It has passed the following tests: VW-1 flame test, sunlight resistance test, crush test, -40℃ cold bending test, etc.
  • Optional markings: Dir Bur, VW-1, -40C.
Specifications:
PV-2000V
Size
 Stranding Insulation Thickness(mm) Nominal Insul. Diam.(mm)
14 AWG 7 0.61 1.9 5.6
12 AWG 7 0.77 1.9 6.1
10 AWG 7 0.97 1.9 6.7
8 AWG 7 1.22 2.15 8
6 AWG 7 1.56 2.15 8.8
4 AWG 7 1.96 2.15 10
3 AWG 7 2.2 2.15 10.7
2 AWG 7 2.47 2.15 11.5
1 AWG 19 1.69 2.66 13.5
1/0 AWG 19 1.89 2.66 14.5
2/0 AWG 19 2.13 2.66 15.6
3/0 AWG 19 2.39 2.66 16.9
4/0 AWG 19 2.68 2.66 18.3
250 MCM 37 2.09 3.04 20.3
300 MCM 37 2.29 3.04 21.6
350 MCM 37 2.47 3.04 22.9
400 MCM 37 2.64 3.04 24
450 MCM 37 2.8 3.04 25.1
500 MCM 37 2.95 3.04 26.1
550 MCM 61 2.41 3.43 28
600 MCM 61 2.52 3.43 28.9
650 MCM 61 2.62 3.43 29.8
700 MCM 61 2.72 3.43 30.6
750 MCM 61 2.82 3.43 31.5
800 MCM 61 2.91 3.43 32.3
900 MCM 61 3.09 3.43 33.8
1000 MCM 61 3.25 3.43 35.3
PV-600V
Size
 Stranding Insulation Thickness(mm)
 Nominal Insul. Diam.(mm)
14 AWG 7 0.61 1.52 4.9
12 AWG 7 0.77 1.52 5.3
10 AWG 7 0.97 1.52 5.9
8 AWG 7 1.22 1.9 7.5
6 AWG 7 1.56 1.9 8.3
4 AWG 7 1.96 1.9 9.5
3 AWG 7 2.2 1.9 10.2
2 AWG 7 2.47 1.9 11
1 AWG 19 1.69 2.41 13
1/0 AWG 19 1.89 2.41 14
2/0 AWG 19 2.13 2.41 15.1
3/0 AWG 19 2.39 2.41 16.4
4/0 AWG 19 2.68 2.41 17.8
250 MCM 37 2.09 2.79 19.8
300 MCM 37 2.29 2.79 21.1
350 MCM 37 2.47 2.79 22.4
400 MCM 37 2.64 2.79 23.5
450 MCM 37 2.8 2.79 24.6
500 MCM 37 2.95 2.79 25.6
550 MCM 61 2.41 3.18 27.5
600 MCM 61 2.52 3.18 28.4
650 MCM 61 2.62 3.18 29.3
700 MCM 61 2.72 3.18 30.1
750 MCM 61 2.82 3.18 31
800 MCM 61 2.91 3.18 31.8
900 MCM 61 3.09 3.18 33.3
1000 MCM 61 3.25 3.18 34.8
