Telecom Power Cable Type IV

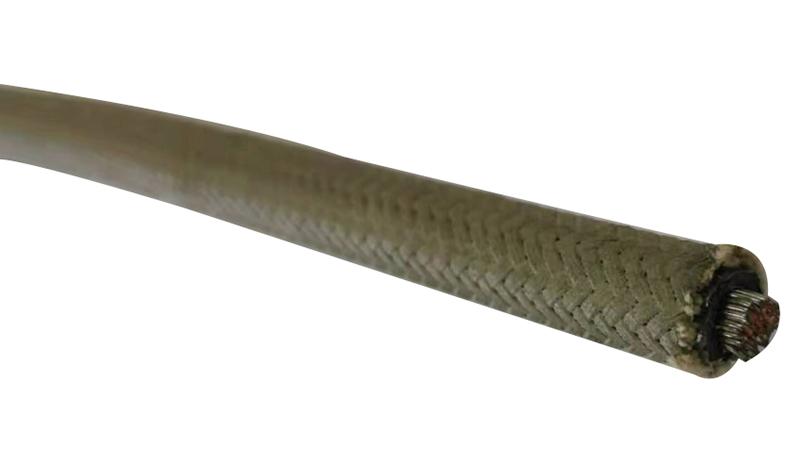

Telecom power cable Type IV has a conductor of stranded tinned copper wires per ASTM B172 with a separator tape wrapped over it. The limited smoke, non-halogen polyolefin insulation is covered with a separator tape and a natural cotton braid. Fire retardant material is applied over the whole assembly.

Telecom power cable Type IV can be used at 600 volts, 90°C dry, 75℃ wet.

Applications:

Telecom power cable Type IV is for use in central offices, telecom power systems (batteries and rectifiers), transmission and remote control systems. It is suitable for both fixed and mobile installations. Custom telecom power cable can be made upon request according to different performance requirements.

Standards:

Our telecom power cable Type IV meets UL 44, UL66 and UL 758 standards. It has passed the following mechanical and electrical tests: FT4-ST1 vertical-tray flame test and smoke release test, VW-1 vertical flame test, FT2 horizontal flame test, aging test on insulation materials, dielectric voltage withstand test, etc.

Specifications:

Part Number	Conductor Size	Stranding	Insulation Thickness(mm)	Complete Cable Diameter (mm)
Type IV	18AWG	7/0.40	0.76	4.8
Type IV	16AWG	7/0.50	0.76	5.1
Type IV	14AWG	41/0.254	1.14	6.4
Type IV	12AWG	65/0.254	1.14	6.9
Type IV	10AWG	105/0.254	1.14	7.6
Type IV	8AWG	41/0.50	1.52	9.0
Type IV	6AWG	65/0.50	1.52	10.0
Type IV	4AWG	105/0.50	1.52	11.8
Type IV	2AWG	165/0.50	1.52	13.2
Type IV	1/0AWG	266/0.50	2.03	16.6
Type IV	2/0AWG	342/0.50	2.03	18.1
Type IV	4/0AWG	532/0.50	2.03	21.0
Type IV	350AWG	882/0.50	2.41	26.4
Type IV	500AWG	1221/0.50	2.41	29.7
Type IV	750AWG	1850/0.50	2.79	35.4
