TFFN Copper Wire

TFFN Wire

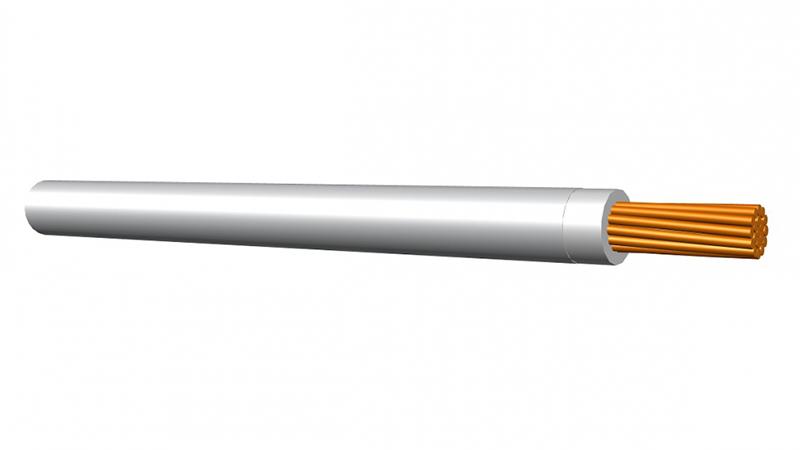

Thermoplastic Flexible Fixture Nylon (TFFN) wire has a PVC insulated conductor of soft bare or tinned copper wires and a nylon jacket with good oil resistance. PVC+Nylon insulation has a smaller thickness than PVC insulation.

TFFN wire is to be used at 600 volts and at a max. conductor temperature of 90℃ in dry locations.

Applications:

TFFN copper wire is mainly used in electric appliances and machine tools.

Standards:

Our TFFN wire meets the requirements of UL 66.

Specifications:
Conductor Size(AWG)
 Conductor Stranding
 PVC Insulation Thickness(mm)
 Nylon Insulation Thickness(mm) Nominal Diameter(mm)
18 16/0.254 0.38 0.10 2.2
16 26/0.254 0.38 0.10 2.5
