Construction
Hebei Huatong Wires and Cables Group Co.,Ltd.

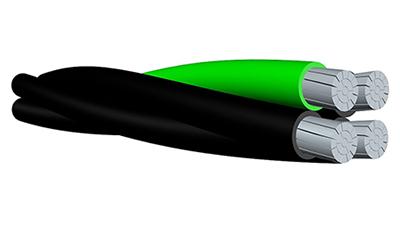

    1. MHF Cable
    2. MHF CableMobile home feeder cable consists of four AA-8000 series aluminum alloy conductors: two phase conductors, a white striped neutral conductor and a green equipment grounding conductor. The conductors are insulated with type RHH/RHW-2/USE-2 cross-linked polyethylene (XLPE).

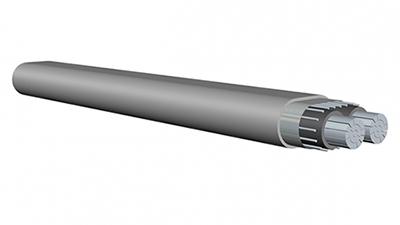

    1. Service Entrance Cable
    2. Service Entrance CableService entrance cable consists of AA-8000 series aluminum alloy conductors, insulated with sunlight resistant type XHHW-2 cross-linked polyethylene (XLPE) and wrapped together with a neutral conductor using a reinforced tape. It has a sunlight resistant PVC jacket that is available in various colors.
    1. RHH RHW-2 USE-2 Cable
    2. RHH RHW-2 USE-2 CableRHH/RHW-2/USE-2 cable has a compact stranded AA-8000 series aluminum alloy conductor with cross-linked polyethylene (XLPE) insulation. It is sunlight, abrasion, moisture and heat resistant.
      RHH/RHW-2/USE-2 cable is suitable for direct burial or underground duct as specified in the NEC.
    1. XHHW-2 Cable
    2. XHHW-2 CableXHHW-2 aluminum cable has a compact stranded AA-8000 series aluminum alloy conductor with cross-linked polyethylene (XLPE) insulation. It has good resistance against sunlight, abrasion, water and heat.
      Cross-linked polyethylene high heat-resistant water-resistant wire is to be used at conductor temperatures up to 90℃ in dry, damp or wet locations.
    1. THHN Wire
    2. THHN WireTHHN/THWN-2 wire is made up of a copper or aluminum alloy conductor with PVC insulation and a nylon jacket that offers good oil resistance. The voltage rating is 600V.
      THHN is to be used at a maximum conductor temperature of 90℃ in dry locations. THWN-2 is suitable for use in dry or wet locations.
    1. TFFN Wire
    2. TFFN WireThermoplastic Flexible Fixture Nylon (TFFN) wire has a PVC insulated conductor of soft bare or tinned copper wires and a nylon jacket with good oil resistance. PVC+Nylon insulation has a smaller thickness than PVC insulation.
      TFFN wire is to be used at 600 volts and at a max. conductor temperature of 90℃ in dry locations.
